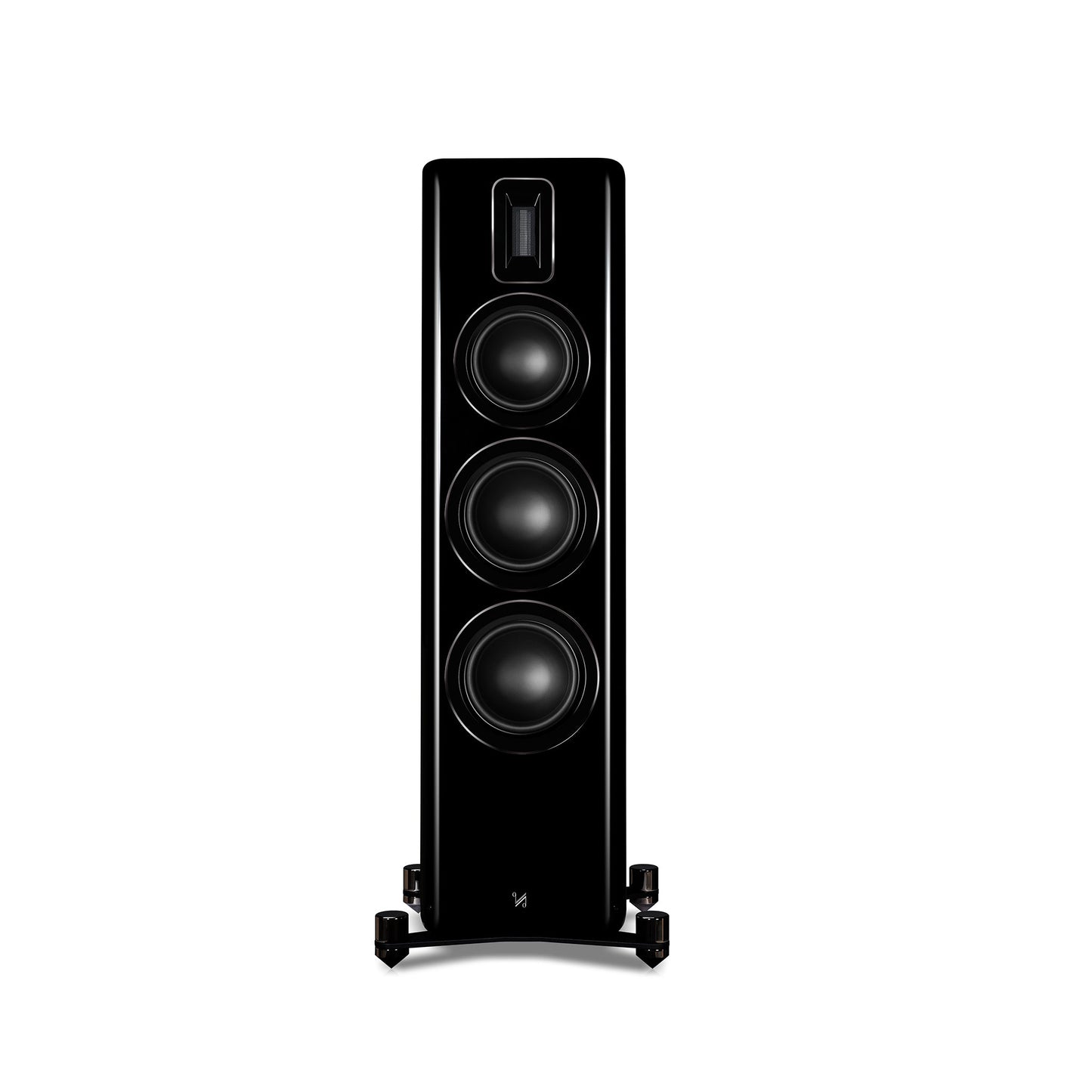

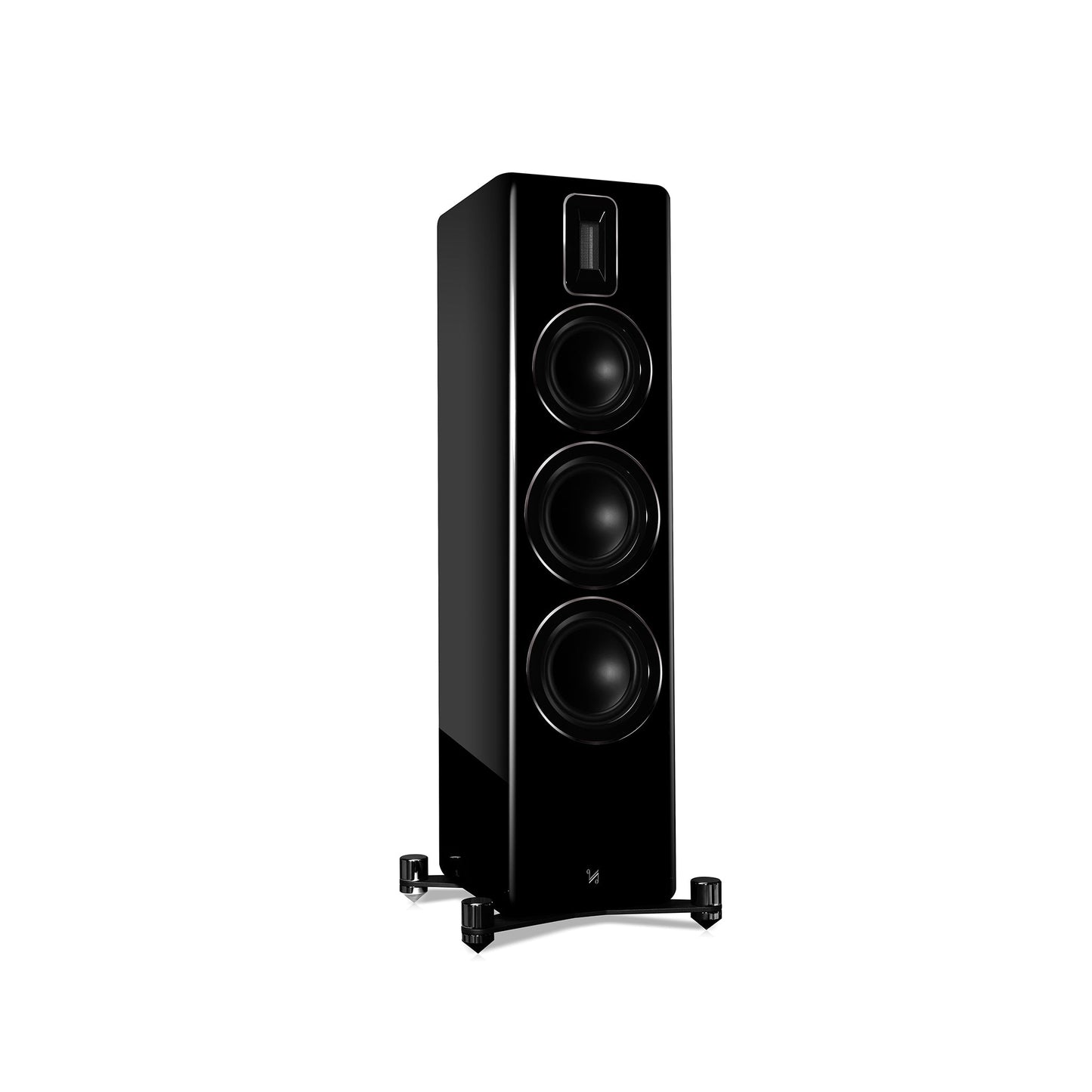

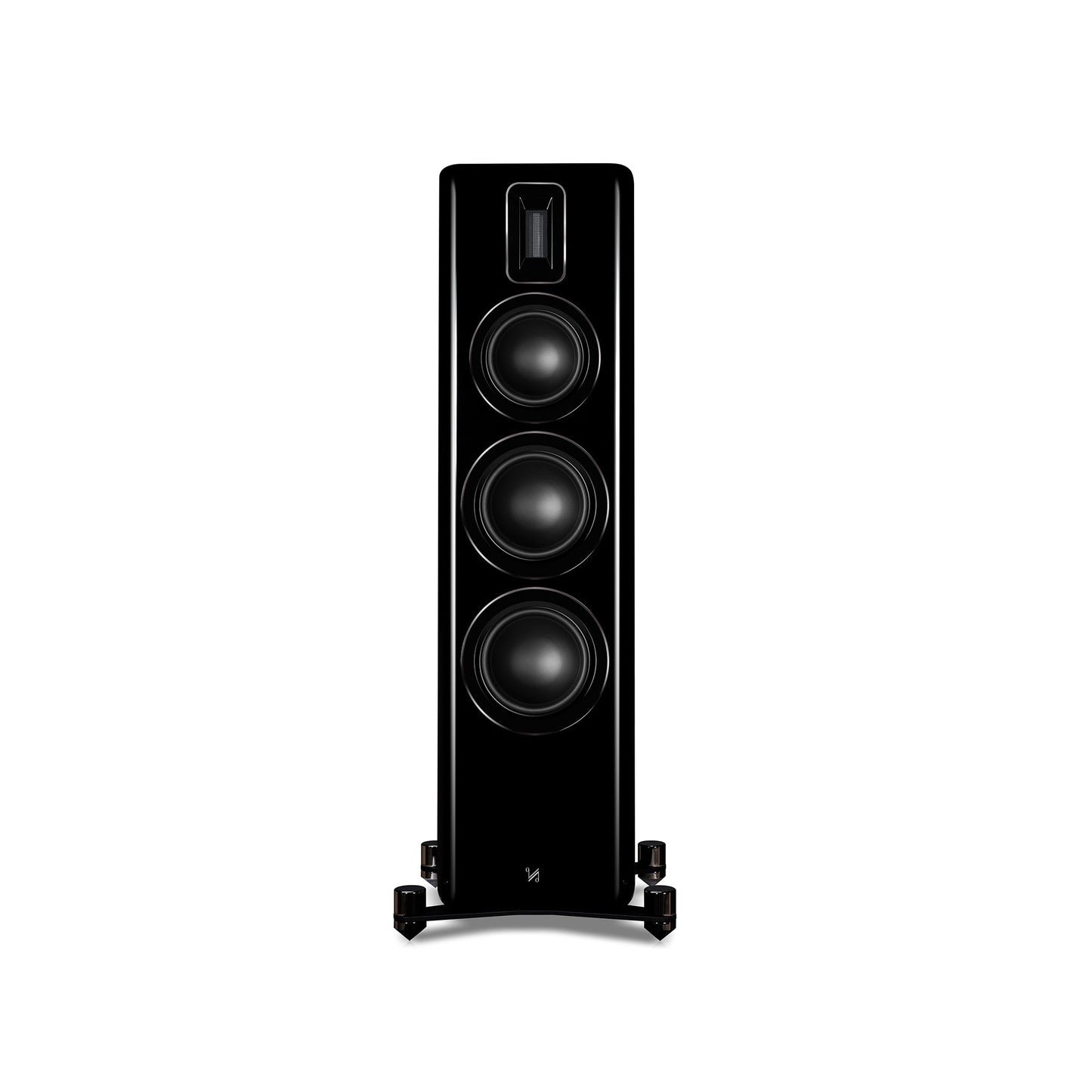

A floor-standing speaker incorporating twin 6.5″ woofers and a 6″ midrange mounted on a rigid die-cast chassis; this combination delivers a rich, controlled bass output with superb dynamic performance.

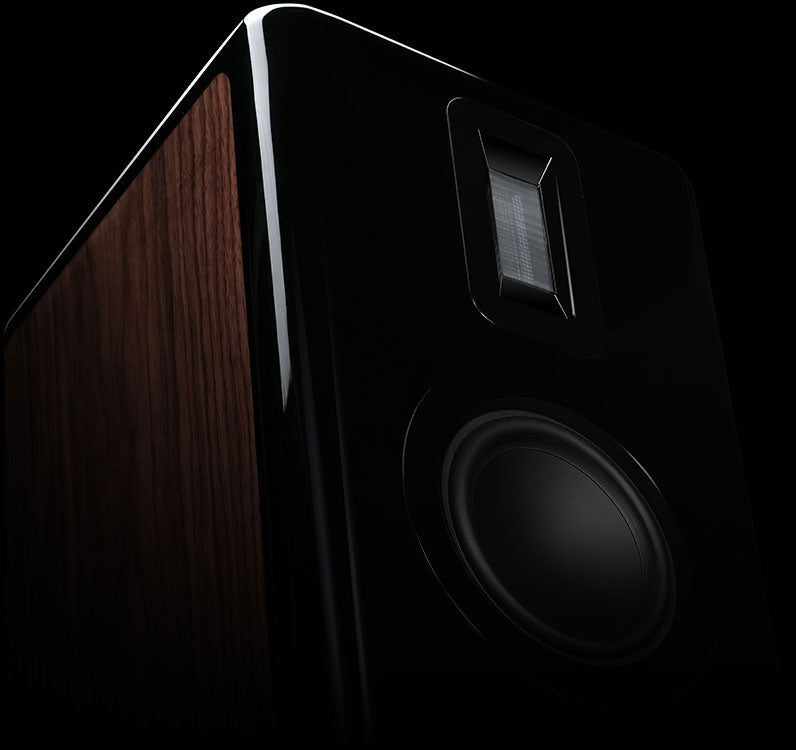

QUAD’s Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF with over four years of research to bring a new level of musical delicacy, smoothness and ‘hear-through’ performance, thus revealing beautiful details of your music collection with a truly breath-taking performance.
The advanced ‘True Ribbon’ unit is married to equally high-performance bass and midrange drivers. Again, subject to many years of research, development, testing and continuous innovation, the mid and bass drivers feature a new advanced fibre composition, aptly labelled ‘Reveal™’. Refined for seamless integration with the ‘True Ribbon’ HF, the smooth diaphragm drivers were purpose selected based on their rigidity and excellent self-damping properties. This new diaphragm, combined with a new, specially developed custom rubber surround, for a greater excursion and a new high-power motor system, means that the result is a superb bass performance, with power, depth, speed and articulation in abundance. And, of course, putting it all together is a phase-compensated Acoustic Butterworth crossover resulting from not only Computer-Aided Design but also hundreds of hours of critical listening tests using all types and flavours of music to achieve perfection.
Polished to Perfection

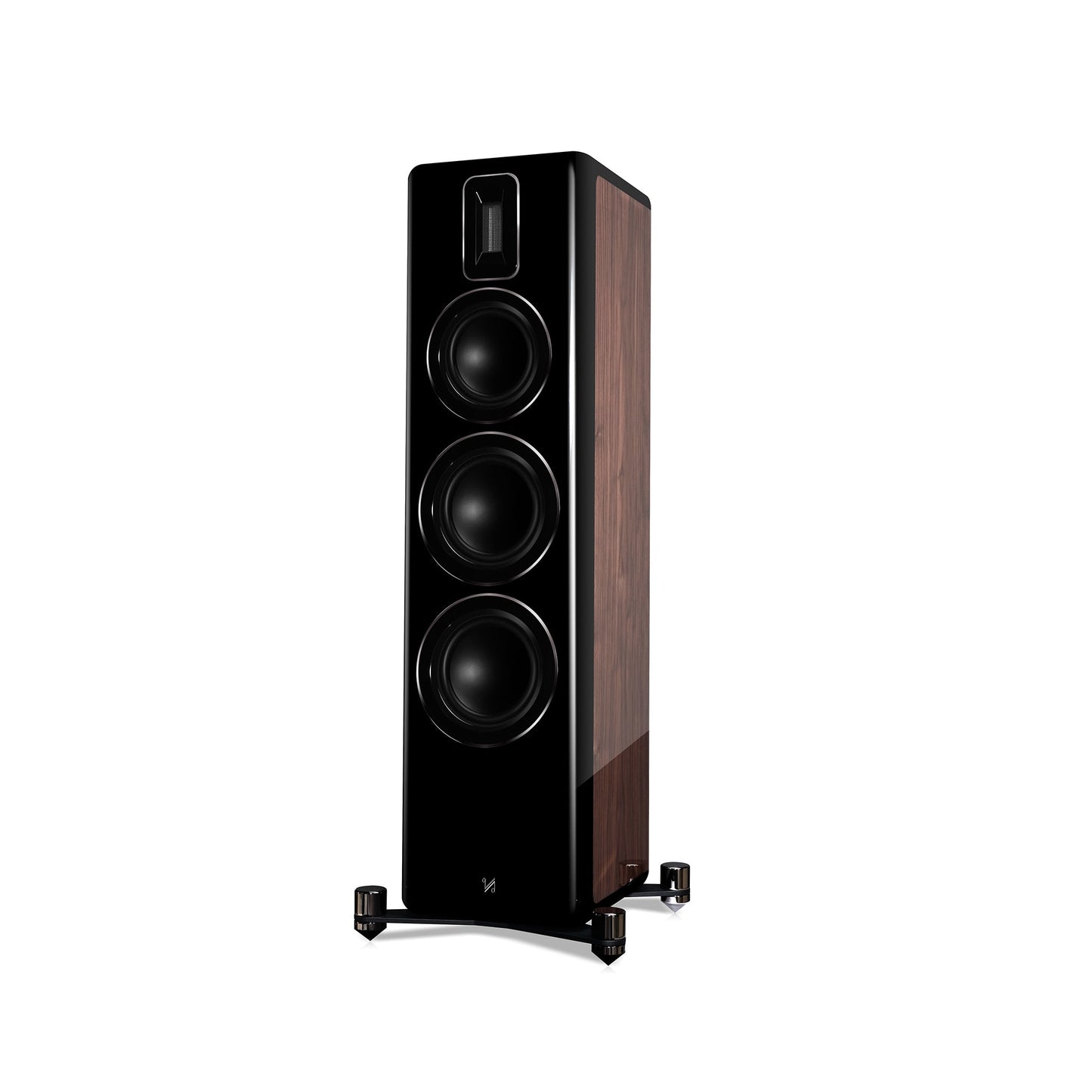

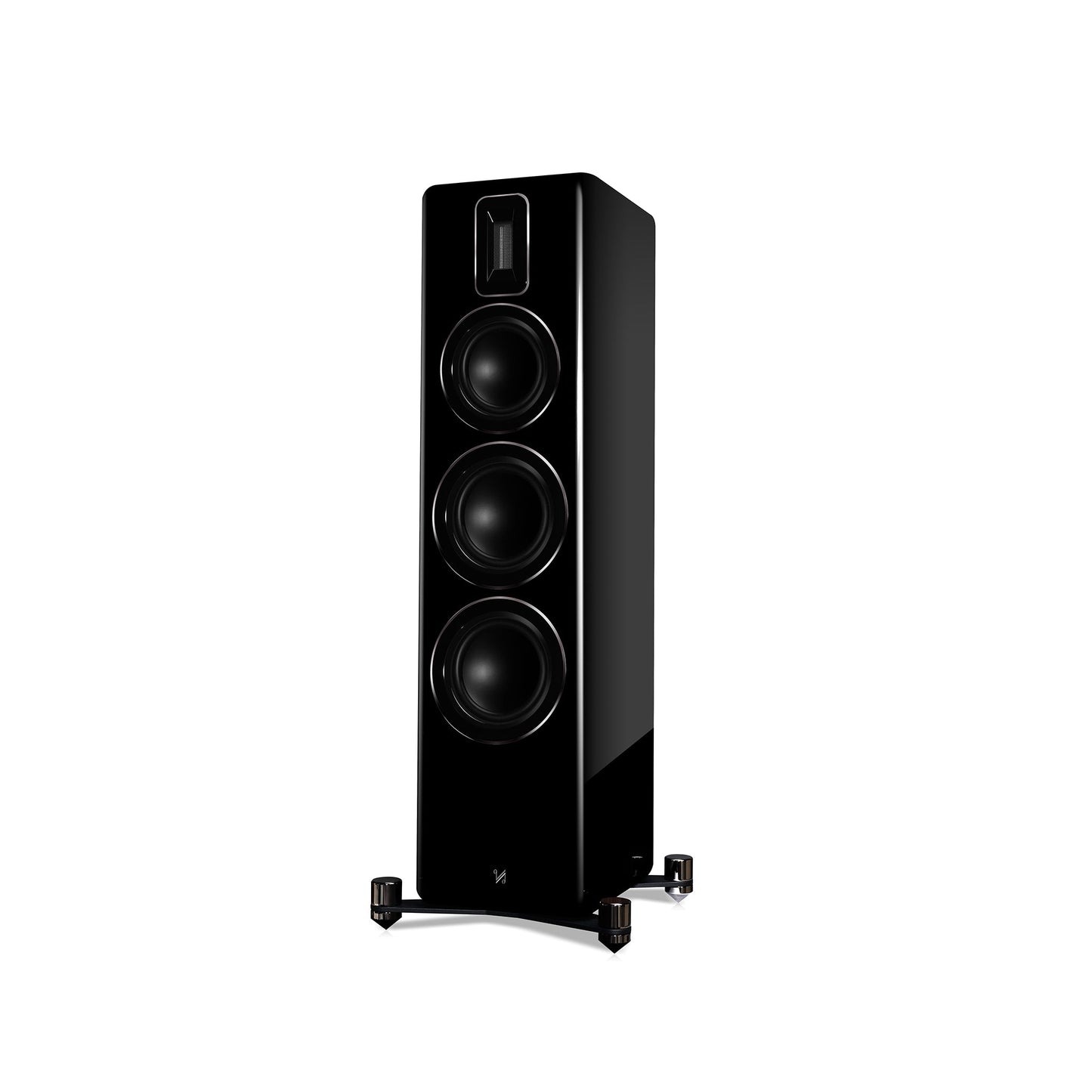

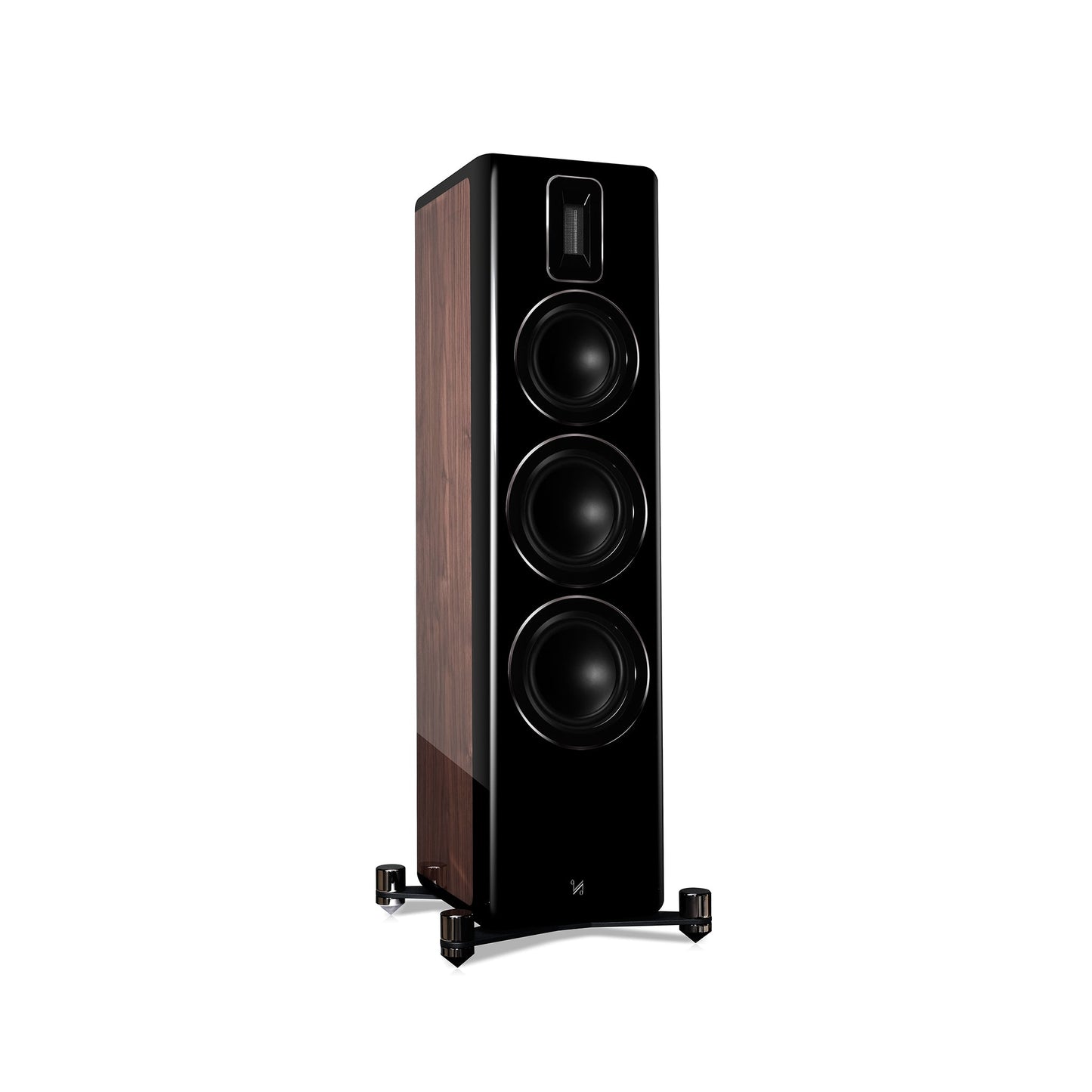

The Revela series continues QUAD’s industrial design evolution, sported in the models of recent years – such as the Vena and Artera series. The Revela series cabinets are skilfully hand-finished to a quality far exceeding that of relative competitors in this class. The Revela series is available in options of a polished real-wood veneer and seamless polished-paint finish or a simple and uber-classy ‘all-black’ glossy paint finish. In either finish, the Revela cabinets are a sight to behold! The precision-fitted baffle is seamlessly joined, also with a polished finish, for a presentation of the highest order. More than just a genuinely stunning furniture-quality piece of craftsmanship, the cabinet is internally braced, using a purpose-engineered structure connected to the cabinet panels in a manner that dissipates unwanted vibrations and resonances, thus maintaining structural rigidity, even under the most strenuous of performances. More than just a photobook-quality design!

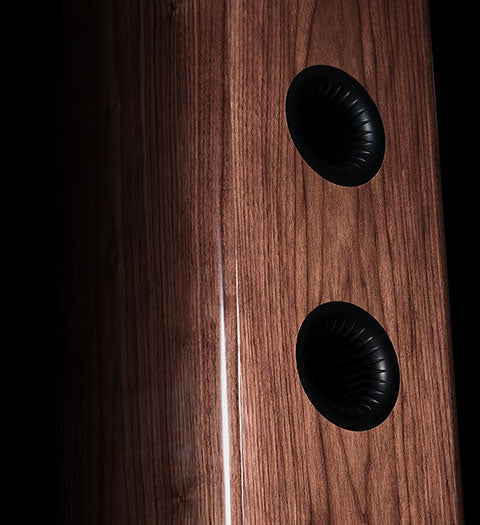

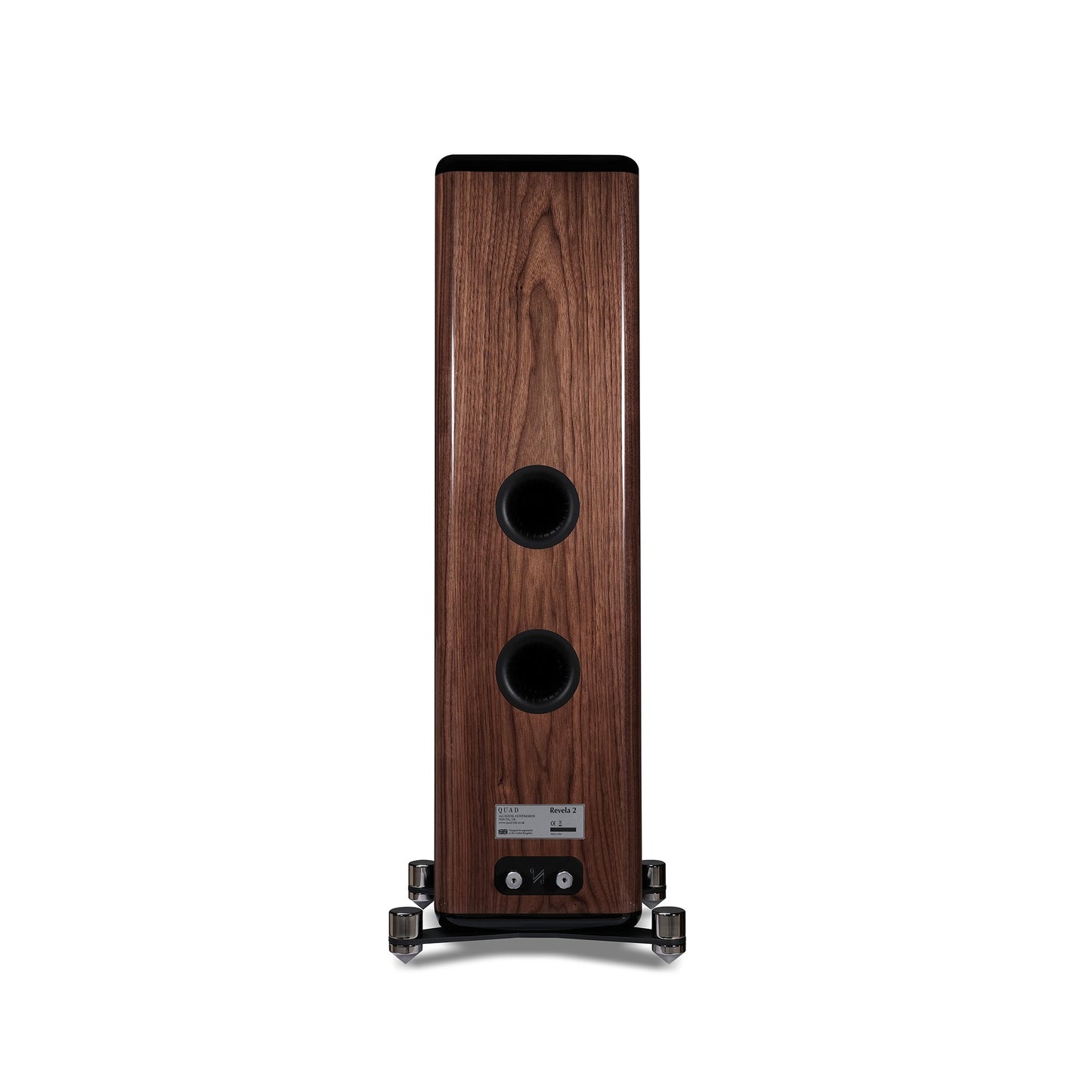

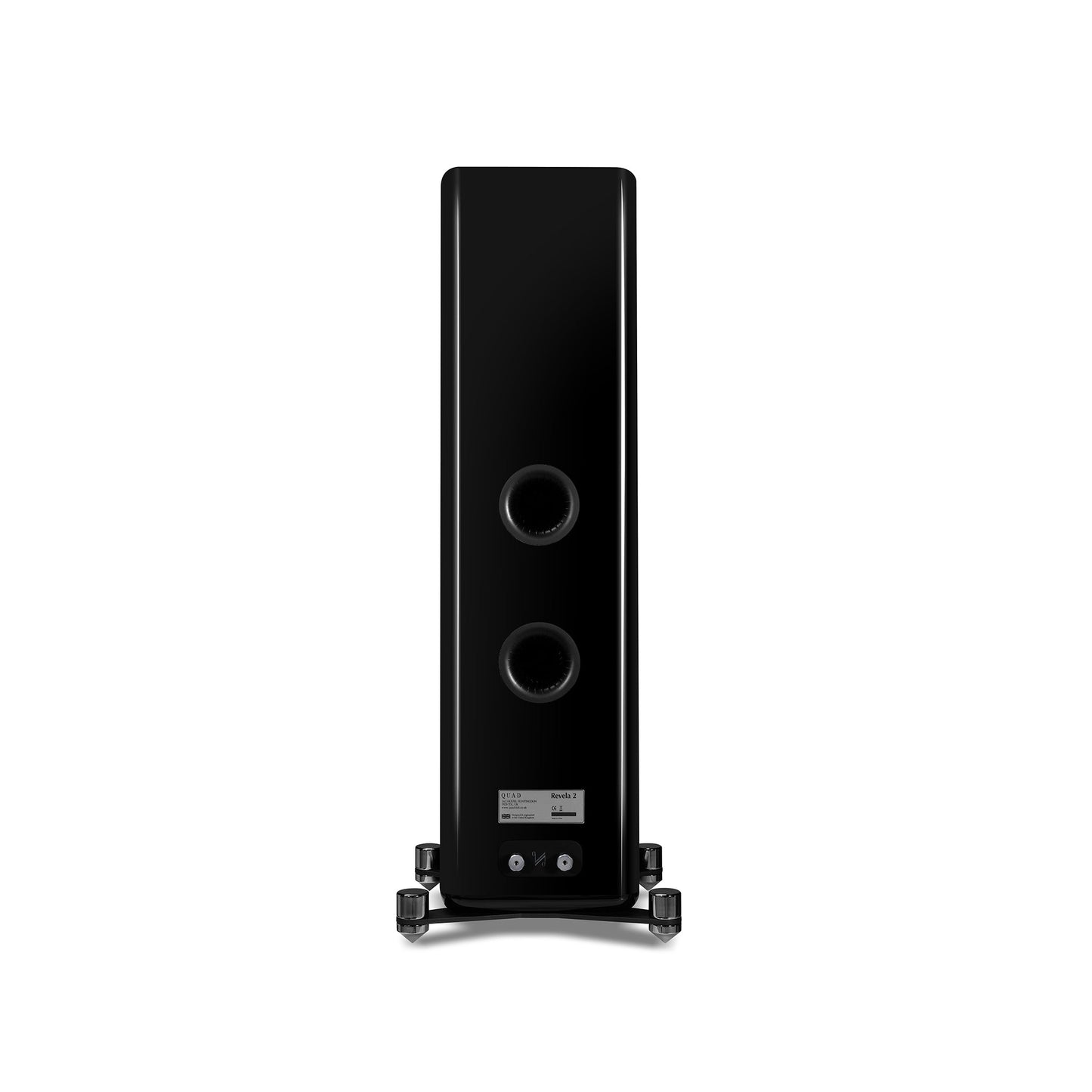

Adding to the highly effective innovations in QUAD Revela, the port tube design is precisely positioned with the optimum diameter and flaring to prevent longitudinal resonances from colouring the speaker’s performance. The low and midrange frequencies can perform with a free-flowing purity and no unintended resonance or boominess – giving you the full dynamics of your music.
A serious statement piece from QUAD, the Revela series is the culmination of more than four years of development. It offers advanced technology, beautiful looks and breath-taking performance, all combined masterfully for ‘The Closest Approach To The Original Sound’.
|Enclosure Type||Bass reflex|
|Bass Driver||2 x 165mm advanced fibre cone|
|Midrange Driver||150mm advanced fibre cone|
|Treble Driver||27 x 60mm true ribbon|
|Sensitivity (2.83V @lm)||89dB|
|Recommended Amplifier power||20-200w|
|Peak Power Handling||200w|
|Frequency Response ( + / -3dB)||40Hz - 24kHz|
|Bass Extension (-6dB)||35Hz|
|Crossover Frequency||650Hz - 3.8kHz|
|Cabinet Volume (in litres)||14.8L/28.5L|
|Height (on plinth & spikes)||965mm|
|Depth(inc Plinth, Grille and Terminals)||325mm|
|Carton Size||440mm x 410mm x 1076mm|
|Finish||Piano Walnut / Piano Black, Piano Black|
|Standard Accessories||User manual, certificate, spike seat|
